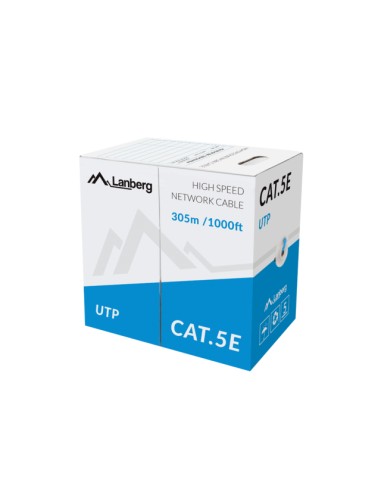

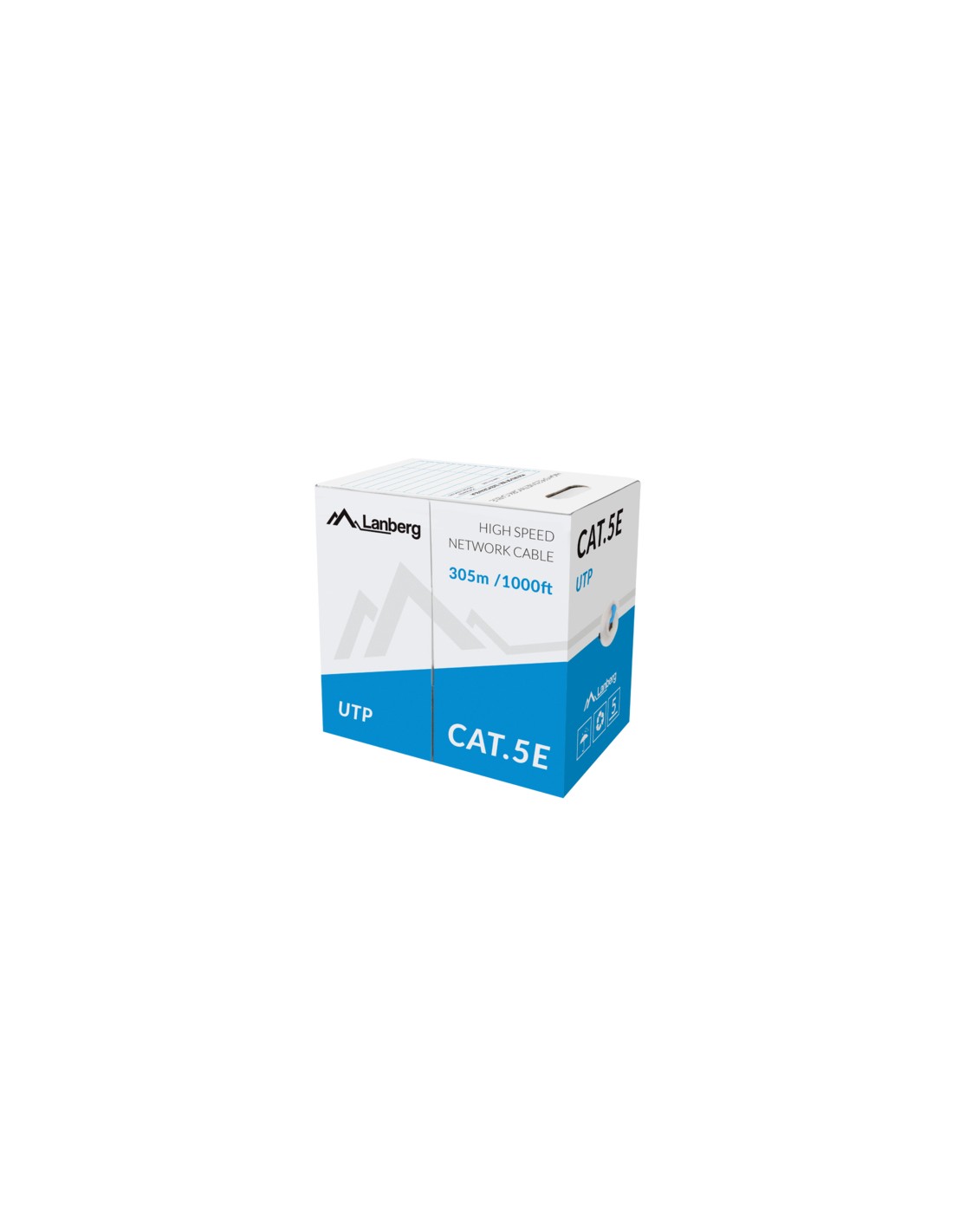

Lanberg Utp Cable Cat.5 305m Cca Azul 100mb

Product specification:

- LAN cable
- Data transmission rate: 100Mb/s
- Shielding: U/UTP (without shielding)
- Length 305m.
- The wires are made of copper conductor cable (CCA).
- AWG 24 (4*2*0.5mm).
- Conductor stranding: single wire.
- Color: blue RAL5012
- Printed length counter at every meter of cable.
- External PVC insulation: 5.0mm.
- HDPE conductor insulation: 0.93mm.
- Operation up to 100Mhz.
- Package: cardboard box.
- Packaging dimensions (W x D x H): 36x23x36 cm.

Electrical characteristics (20 degrees):

- Conductor resistance (max.): 60 - 90Om / 305m.
- Insulation resistance (min.): 5000mOm km.
- Pair-to-Ground capacitance: < 330PF / 100m.
- Characteristic impedance: < 100Om (+/- 15).
- Transport and storage temperature: 0 - 60 degrees.
- Operating temperature: -20 - 70 degrees.
- Working distance: 100-120m.

PURPOSE: Cable only for division into shorter sections (up to 10m). Only for installation without fluke certification requirement (EN 50173)
