Cable Cat.6a U/utp 500mhz Dca Drum Sx Azul 500m

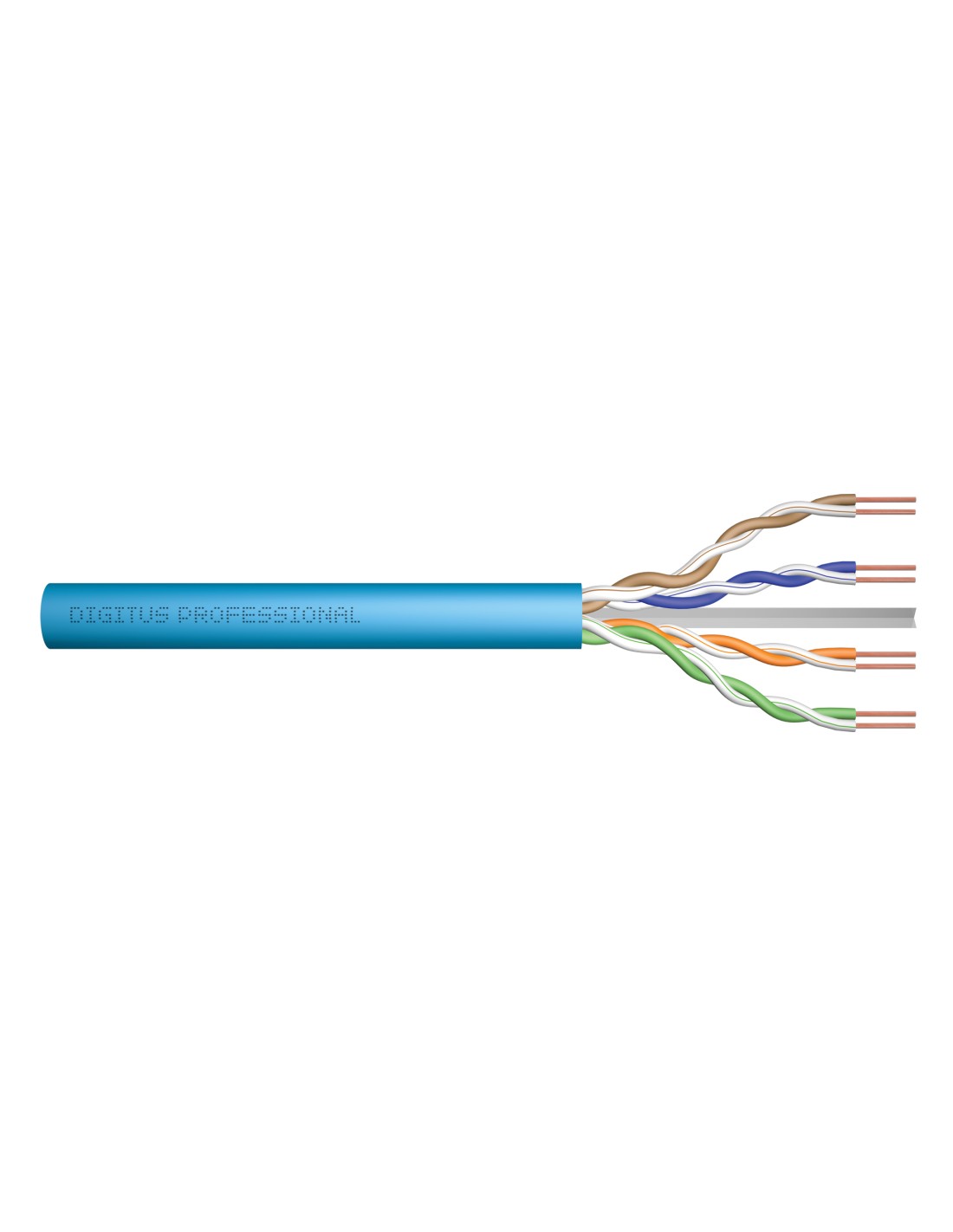

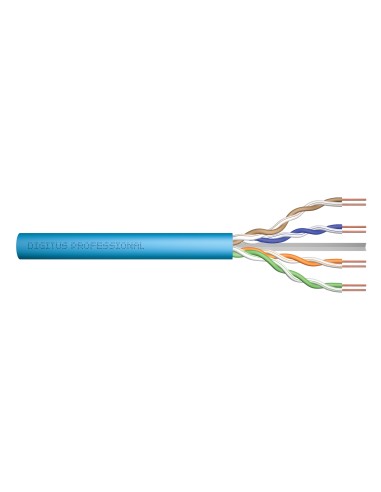

Digitus Cat.6A U/UTP installation cable, 500 m, simplex, Dca

• Physical properties:
• Conductor: Bare annealed copper, olid AWG 23/1
• Insulation: HD-PE (High Density Polyethylene)
• Total number of insulated conductors: 8, twisted in 4 pairs
• Color code: Blue-white, orange-white, green-white, brown-white
• Individual pair shield: None
• Overall shielding: None
• Outer sheath: Dca to B2ca acc. to EN 50575; LSZH
• Outer sheath diameter (nominal): 0,5 mm (Eca); 0,6 mm (Dca); 1,2 mm (Cca); 1,4 mm (B2ca)
• Outer sheath color: Light blue (RAL 5012)
• Mechanical properties:
• Tensile loading: 150N max.
• Dynamic bending radius: 8x AD mm min.
• Static bending radius: 4x AD mm min.
• Shipping- and storage temperature range: -20 °C up to +60 °C
• Operating temperature range: -20 °C up to +75 °C
• Installation temperature range: 0 °C up to +50 °C
• Overall diameter Simplex (nominal): 7,1 mm (Eca); 7,3 mm (Dca); 7,4 mm (Cca); 7,6 mm (B2ca)
• Weight (kg/km): 53 kg (Eca); 54 kg (Dca); 55 kg (Cca); 56 kg (B2ca)
• Electrical properties:
• Impedance: 100±5Ohm @ 1 - 600MHz
• Capacitance: 40 pF/m nominal @ 1 KHz
• Capacitance unbalance (pair-ground): 1.6 pF/m max. @ 1 KHz
• Insulation resistance: 5 GOhm x km min.
• DC loop resistance: 147 Ohm/km max. (2% max. resistance unbalance)
• Voltage resistance: 72 Vdc max.
• Coupling attenuation: CA-Type 2
• Signal propagation delay: 450 nS/100 m max.
• Propagation delay: 10 nS/100 m max.
• Separating class: "c" acc. to EN 50174-2
• NVP: 70%
